John Deere 5310

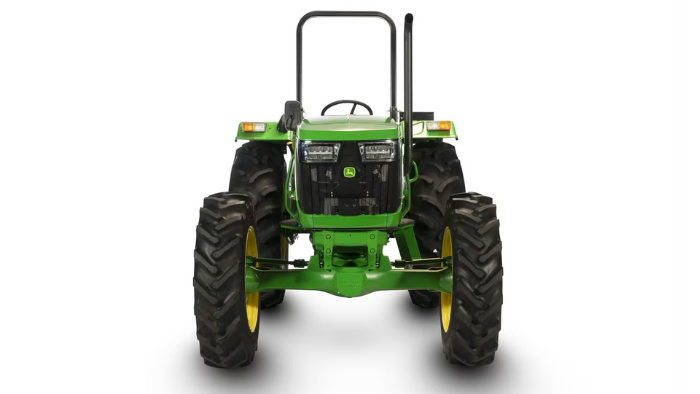

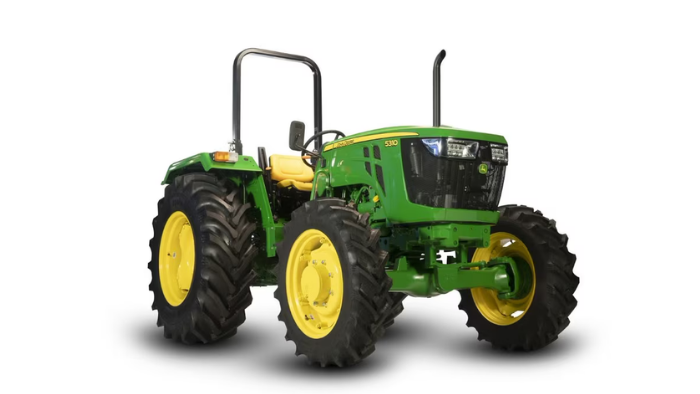

John Deere 5310 is a 55 HP tractor designed for exceptional performance, power and reliability. Its powerful engine and state-of-the-art technology makes it the best choice for wide range of applications in different soil conditions.

Look out for –
  • High back up torque for heavy duty applications
  • Power steering increases productivity
  • Self-adjusting, self-equalizing Oil immersed disc brakes for higher safety and less maintenance

To know more about John Deere tractor price range connect with your nearest dealer now !

John Deere 5310
ENGINE
Type 55 HP (41 kW), 2400 RPM, 3 Cylinders, Direct injection, Turbo charged, Inline FIP, Coolant cooled with overflow reservoir
Air filter Dry Type, Dual element
TRANSMISSION
Type Synchromesh Transmission (TSS)
Clutch Dual
Gear box 9 Forward + 3 Reverse, Collarshift, TSS, 9F+3R with additional creeper speeds
Speeds Forward 2.6 – 31.9 kmph Reverse 3.8 – 24.5 kmph
BRAKES
Type Self Adjusting and Self equalizing, Hydraulically Actuated, Oil Immersed disk brakes
HYDRAULICS
Maximum Lifting capacity 2000 kgf
3 point linkage 3 Point Linkage Automatic depth and draft control (ADDC)
STEERING
Type Power
POWER TAKE OFF
Type Independent, 6 Splines
RPM 540 @ 2376 ERPM
WHEELS AND TYRES
Front 6.5 x 20 (0.17 x 0.51 m), 8 PR
Rear 16.9 x 28 (0.43 x 0.71 m), 12 PR
FUEL TANK
Capacity 68L
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM 88 Ah, 12 V Battery, 40 Amp.
ACCESSORIES
accssories • Ballast Weights • Canopy • Canopy Holder • Draw bar • Tow hook • Wagon hitch
DIMENSIONS AND WEIGHT
Total weight 2110 kg
Wheel base 2050 mm
Overall length 3535 mm
Overall width 1850 mm
Ground clearance 0435 mm
Turning radius with Brakes 3150 mm
