John Deere 5105 D
- Vehicle Overview
- Specifications & Features

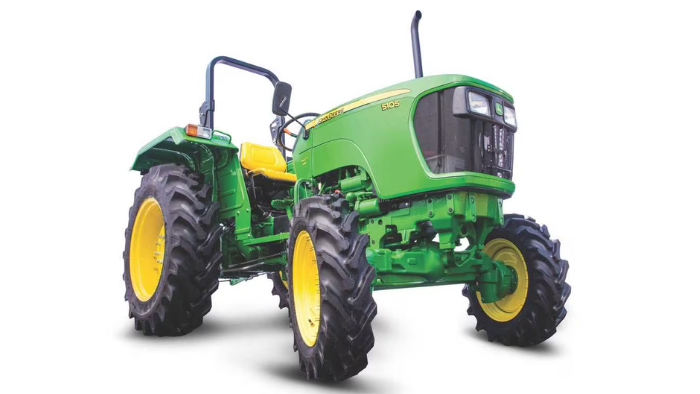

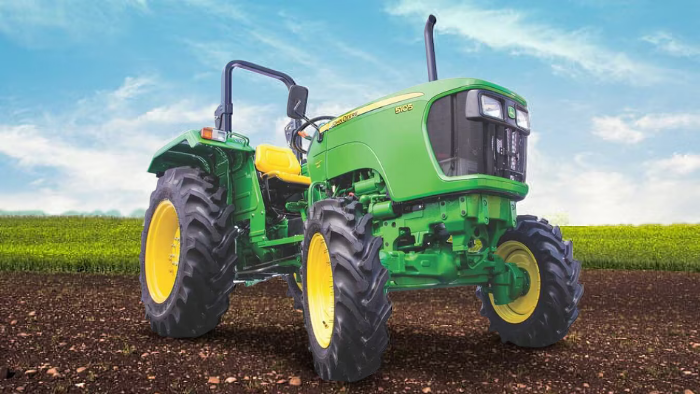

John Deere 5105
John Deere tractor 5105 is offered in both 2 WD and 4 WD, in the 40 HP tractor segment. Packed with power, this heavy-duty agricultural tractor is best suited for both dry and wet land cultivation.
Look out for –
- Power steering increases productivity for long working hours
- 4WD with regular & High lug depth tires
- Selective control valve for hydraulically operated implements provides ease of operation
To know more about John Deere tractor price range connect with your nearest dealer now !
John Deere 5105
ENGINE
| Type | John Deere 3029D, 40 HP (29.8 kW), 2100 RPM, Coolant cooled with overflow reservoir, Naturally aspirated |
|---|---|
| Air filter | Dry Type, Dual element |
TRANSMISSION
| Type | Synchromesh Transmission (TSS) |
|---|---|
| Clutch | Single/Dual |
| Gear box | 8 Forward + 4 Reverse, Collarshift |
| Speeds | Forward 2.83 – 31.07 kmph 2WD : Reverse 4.10 -14.87 kmph 4WD : Reverse 3.74 – 13.52 kmph |
HYDRAULICS
| Maximum Lifting capacity | 1600 kgf |
|---|---|
| 3 point linkage | Category- II Automatic depth and draft control (ADDC) |
POWER TAKE OFF
| Type | Independent, 6 Splines |
|---|---|
| RPM | 540 @ 2100 ERPM |
WHEELS AND TYRES
| Front | 6.0 x 16 (0.15 x 0.41 m), 8 PR |
|---|---|
| Rear | 13.6 x 28 (0.34 x 0.71 m), 12 PR |
FUEL TANK
| Capacity | 60L |
|---|
- Vehicle Overview
- Power steering increases productivity for long working hours...
- 4WD with regular & High lug depth tires...
- Selective control valve for hydraulically operated implements provides ease of operation...
- Specifications & Features
John Deere 5105D
John Deere tractor 5105 is offered in both 2 WD and 4 WD, in the 40 HP tractor segment. Packed with power, this heavy-duty agricultural tractor is best suited for both dry and wet land cultivation.
Look out for –
To know more about John Deere tractor price range connect with your nearest dealer now !
John Deere 5105D - Specifications
ENGINE
| Type | John Deere 3029D, 40 HP (29.8 kW), 2100 RPM, Coolant cooled with overflow reservoir, Naturally aspirated... |
|---|---|
| Air filter | Dry Type, Dual element |
TRANSMISSION
| Type | Synchromesh Transmission (TSS) |
|---|---|
| Clutch | Single / Dual |
| Gear box | 8 Forward + 4 Reverse, Collarshift |
| Speeds | Forward 2.83 – 31.07 kmph 2WD : Reverse 4.10 -14.87 kmph 4WD : Reverse 3.74 -13.52 kmph |
HYDRAULICS
| Maximum Lifting capacity | 1600 kgf |
|---|---|
| 3 point linkage | Category- II Automatic depth and draft control (ADDC) |
POWER TAKE OFF
| Type | Independent, 6 Splines |
|---|---|
| RPM | 540 @ 2100 ERPM |
WHEELS AND TYRES
| Front | 6.0 x 16 (0.15 x 0.41 m), 8 PR |
|---|---|
| Rear | 13.6 x 28 (0.34 x 0.71 m), 12 PR |
FUEL TANK
| Capacity | 60L |
|---|
