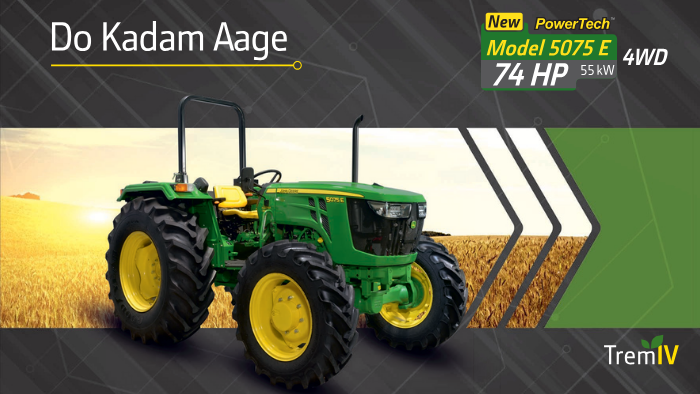

John Deere 5075 is a powerful 75 HP tractor equipped with advanced technology. Its powerful turbocharged engine delivers higher lift capacity and unmatched power is suitable for all heavy-duty applications.
To know more about John Deere tractor price range connect with your nearest dealer now !
Type | John Deere 3029H, 75 HP (55 kW), 2100 RPM, 3 Cylinders, Turbo Charged, HPCR fuel injection system, Coolant cooled with overflow reservoir, Naturally aspirated |
---|---|
Air filter | Dry Type, Dual element |
Clutch | Dual clutch, Dry clutch, EH clutch (optional) |
---|---|
Gear box | 12F + 4R (GearPro Speed), 12F + 12R (PowrReverser Speed), 9F + 3R (Creeper Speed) |
Speeds | Forward: 12F+4R - 2.1 kmph to 31.4 kmph, 12F+12R - 1.5 kmph to 32.7 kmph, creeper - 0.36 kmph to .77 kmph, 12F+12R - 1.5 kmph to 39 kmph Reverse: 3.7 kmph to 20 kmph, Creeper - 0.64 kmph, 12F+12R - 1.6 kmph to 20 kmph |
Type | Oil immersed disc brakes |
---|
Maximum Lifting capacity | 2500 kgf |
---|
Type | Power steering / Tilt steering option |
---|
Type | Independent, 6 Splines |
---|---|
RPM | Dual PTO Standard: 540 @ 2100 ERPM Economy: 540E @ 1600 ERPM |
Front | 12.2 x 24 , 8 PR |
---|---|
Rear | 18.4 x 30, 12 PR |
Capacity | 71 ltr |
---|
Total weight | 2WD - 2450kgs . 4WD - 2700 kgs |
---|---|
Wheel base | 2050 mm |
Overall length | 3678 mm |
Overall width | 1982 mm |
Ground clearance | 2WD : 520 mm 4WD : 425 mm |
